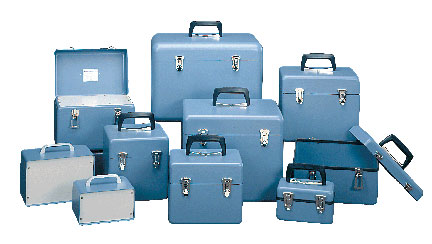

ZERO Valuline Instrument Cases


ZERO Valuline Instrument Cases

  • The Valuline™ Series provides a variety of features and options in selecting a case
  • Constructed of deep drawn aluminum shells, the case shells are seamless
  • Three closure options
  • Variations of internal panel mounting, give added versatility in the packaging of electronic, electro - mechanical, or instrumentation equipment
  • Custom sizes - You may design a case from the standard sizes of deep drawn enclosures in the Deep Drawn Catalog
  • All listed sizes can be utilized without a tooling charge

Standard Features

  • Material: Aluminum Alloy.
  • Latches: Zamak #7 - Nickel Plated.
  • Hinges: Riveted - nickel plated steel. Separable on all styles.
  • Handle: Black molded plastic with nickel plated hardware.
  • Feet: Integral Dimpled
  • Panels: Aluminum with chemical film finish.
  • Material Thickness 0.090"
  • Tolerances: ± 0.06"

Additional Information

  • Most economical of the Valuline™ cases
  • Available in 11 off - the - shelf sizes
  • ZC 7000 Series include separable hinges
  • All cases feature fully gasketed, bonded closures which fit over the edge of the lower shell

Item # Item Name Outside Width Outside Length Mat. Thickness Tolerances
ZC7010 Valuline™ Instrument Carry Case 4.000 in 7.000 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7020 Valuline™ Instrument Carry Case 4.000 in 8.75 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7030 Valuline™ Instrument Carry Case 5.000 in 7.000 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7040 Valuline™ Instrument Carry Case 5.5 in 8.000 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7050 Valuline™ Instrument Carry Case 5.69 in 10 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7060 Valuline™ Instrument Carry Case 6.000 in 9 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7070 Valuline™ Instrument Carry Case 6.000 in 14.5 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7080 Valuline™ Instrument Carry Case 7.00 in 11 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7090 Valuline™ Instrument Carry Case 8.00 in 14.00 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7100 Valuline™ Instrument Carry Case 9.00 in 9 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZC7110 Valuline™ Instrument Carry Case 9.18 in 13.25 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP805 Valuline™ Instrument Carry Case 6.000 in 9 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP810 Valuline™ Instrument Carry Case 7.00 in 11 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP820 Valuline™ Instrument Carry Case 8.00 in 14.00 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP830 Valuline™ Instrument Carry Case 8.75 in 12.00 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP840 Valuline™ Instrument Carry Case 9.19 in 13.25 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZIP850 Valuline™ Instrument Carry Case 10.000 in 16.00 in 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-05 Valuline™ 800 Series Panel for ZIP805 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-10 Valuline™ 800 Series Panel for ZIP810 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-20 Valuline™ 800 Series Panel for ZIP820 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-30 Valuline™ 800 Series Panel for ZIP830 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-40 Valuline™ 800 Series Panel for ZIP840 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZP9178-50 Valuline™ 800 Series Panel for ZIP850 N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZSP9-014-3 Valuline™ 800 Series Panel Brackets N/A N/A 0.090 in ± 0.06 in REQUEST A QUOTE
ZIC608 Valuline™ Instrument Carry Case 7.00 in 8.000 in 0.090 in ± 0.06 in REQUEST A QUOTE
